Ring And Pinion Tooth Contact Pattern . Automotive ring and pinion gears must be installed and set up in a very specific way to ensure that they will run smoothly. The images below illustrate both acceptable. The toe of the gear tooth is the portion of the tooth surface at the end. proper ring gear to pinion gear contact pattern is critical for quiet and trouble free gear set operation. here's how to achieve the best ring & pinion contact pattern , every time,. a contact pattern centered from face to flank indicates the correct pinion depth. check the tooth contact pattern to diagnose or after installing and adjusting a new ring and pinion gearset. The final pinion position will be verified by using the gear. ring gear and pinion tooth pattern interpretation. ring and pinion gear pattern is one of the most valuable tools for determining if a differential is properly set up. A contact pattern closer to. ring and pinion gear tooth pattern. Begin by setting proper pinion bearing preload,. ring gear and pinion tooth contact pattern.
from www.cherokeetalk.com
The toe of the gear tooth is the portion of the tooth surface at the end. ring gear and pinion tooth contact pattern. check the tooth contact pattern to diagnose or after installing and adjusting a new ring and pinion gearset. ring and pinion gear pattern is one of the most valuable tools for determining if a differential is properly set up. A contact pattern closer to. The final pinion position will be verified by using the gear. ring gear and pinion tooth pattern interpretation. Begin by setting proper pinion bearing preload,. The images below illustrate both acceptable. proper ring gear to pinion gear contact pattern is critical for quiet and trouble free gear set operation.
Ring and Pinion Pattern Part 2
Ring And Pinion Tooth Contact Pattern ring and pinion gear tooth pattern. ring gear and pinion tooth contact pattern. ring and pinion gear pattern is one of the most valuable tools for determining if a differential is properly set up. The final pinion position will be verified by using the gear. Automotive ring and pinion gears must be installed and set up in a very specific way to ensure that they will run smoothly. ring and pinion gear tooth pattern. The toe of the gear tooth is the portion of the tooth surface at the end. Begin by setting proper pinion bearing preload,. here's how to achieve the best ring & pinion contact pattern , every time,. The images below illustrate both acceptable. proper ring gear to pinion gear contact pattern is critical for quiet and trouble free gear set operation. a contact pattern centered from face to flank indicates the correct pinion depth. check the tooth contact pattern to diagnose or after installing and adjusting a new ring and pinion gearset. ring gear and pinion tooth pattern interpretation. A contact pattern closer to.
From firetrucksandequipment.tpub.com
Ring Gear And Pinion Tooth Contact Adjustment Ring And Pinion Tooth Contact Pattern The toe of the gear tooth is the portion of the tooth surface at the end. a contact pattern centered from face to flank indicates the correct pinion depth. ring and pinion gear tooth pattern. The final pinion position will be verified by using the gear. The images below illustrate both acceptable. A contact pattern closer to. . Ring And Pinion Tooth Contact Pattern.
From www.youtube.com
The Easiest Way to Read Ring & Pinion Contact Patterns YouTube Ring And Pinion Tooth Contact Pattern Automotive ring and pinion gears must be installed and set up in a very specific way to ensure that they will run smoothly. check the tooth contact pattern to diagnose or after installing and adjusting a new ring and pinion gearset. ring gear and pinion tooth pattern interpretation. The toe of the gear tooth is the portion of. Ring And Pinion Tooth Contact Pattern.
From www.youtube.com
Ring & Pinion Patterns explained, back lash vs pinion depth YouTube Ring And Pinion Tooth Contact Pattern The final pinion position will be verified by using the gear. ring gear and pinion tooth contact pattern. here's how to achieve the best ring & pinion contact pattern , every time,. A contact pattern closer to. check the tooth contact pattern to diagnose or after installing and adjusting a new ring and pinion gearset. ring. Ring And Pinion Tooth Contact Pattern.
From www.pirate4x4.com
Once backlash is within spec you can set the pinion depth by reading Ring And Pinion Tooth Contact Pattern ring gear and pinion tooth contact pattern. Begin by setting proper pinion bearing preload,. A contact pattern closer to. check the tooth contact pattern to diagnose or after installing and adjusting a new ring and pinion gearset. here's how to achieve the best ring & pinion contact pattern , every time,. The toe of the gear tooth. Ring And Pinion Tooth Contact Pattern.
From www.hotrodders.com
Ring & Pinion Tooth Contact Pattern GM 10Bolt Page 3 Hot Rod Forum Ring And Pinion Tooth Contact Pattern ring and pinion gear tooth pattern. here's how to achieve the best ring & pinion contact pattern , every time,. The images below illustrate both acceptable. ring gear and pinion tooth contact pattern. ring gear and pinion tooth pattern interpretation. check the tooth contact pattern to diagnose or after installing and adjusting a new ring. Ring And Pinion Tooth Contact Pattern.
From dxoyjkxgj.blob.core.windows.net
Pinion Ring Gear Contact Pattern at James Proffitt blog Ring And Pinion Tooth Contact Pattern The toe of the gear tooth is the portion of the tooth surface at the end. The images below illustrate both acceptable. a contact pattern centered from face to flank indicates the correct pinion depth. ring and pinion gear pattern is one of the most valuable tools for determining if a differential is properly set up. ring. Ring And Pinion Tooth Contact Pattern.
From www.hotrodders.com
Ring & Pinion Tooth Contact Pattern GM 10Bolt Page 2 Hot Rod Forum Ring And Pinion Tooth Contact Pattern The images below illustrate both acceptable. here's how to achieve the best ring & pinion contact pattern , every time,. ring and pinion gear tooth pattern. proper ring gear to pinion gear contact pattern is critical for quiet and trouble free gear set operation. check the tooth contact pattern to diagnose or after installing and adjusting. Ring And Pinion Tooth Contact Pattern.

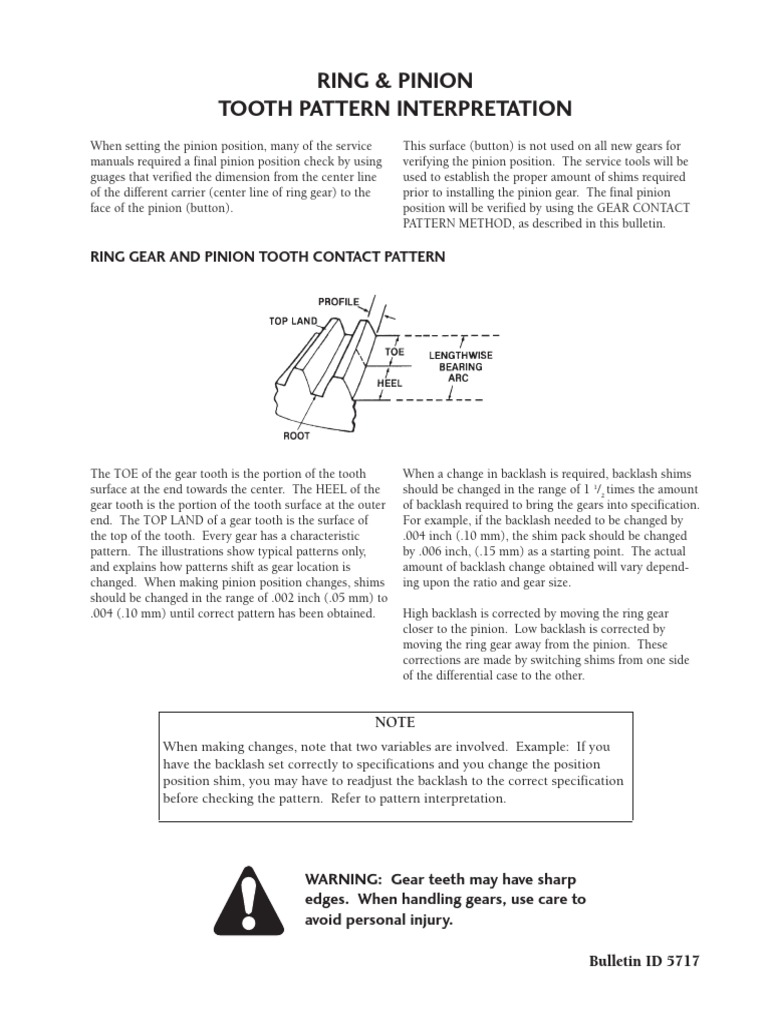

From www.scribd.com
